English Wheels & Wheeling Accessories

The English wheeling machine gets its name from the two steel wheels between which metal is formed. The wheels – flat wheel above and curved wheel below – are rolled against a sheet of metal under a pre-adjusted pressure setting causing the metal to stretch and curve. U.S. Industrial manufactures two different wheeling machines.

English wheeling machines come in mobile and bench mounted styles. These mobile machines are mounted on casters that are replaceable.

The US1001 foot activated English wheeling machine has a reach of 44” and an opening height of 38” with three anvil wheels included.

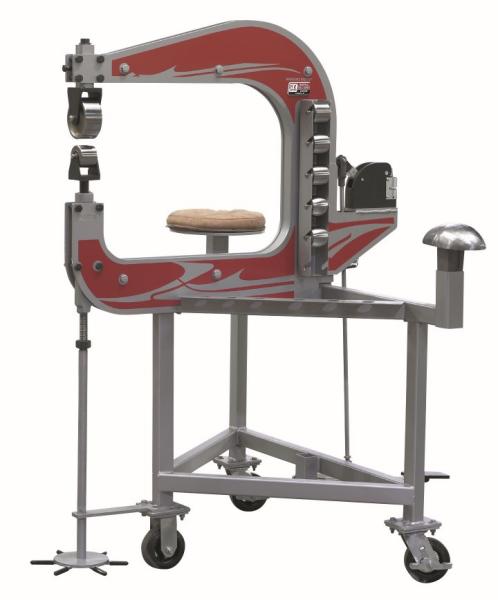

The USFPMS-2001 foot activated Mobile Shaper wheeling machine is a mobile sheetmetal shaping center allowing many different tasks to be done on a single machine. This English wheeling machine has a reach of 29” and an opening height of 19” with six anvil wheels included.

The USFPMS-2001 is equipped with a shot bag, interchangeable pre-forming and planishing dollies, and foot operated shrinker/stretcher.

Optional wheels, stretcher jaws, and replacement wheels are available at additional cost.

The Mittler Bros. bench mounted English wheeling machine part number 2900 has a reach of 26 ½” and an opening of 2” with six anvil wheels included. This wheeling machine is great for small jobs; perfect entry level machine.

Manufactured and assembled in the USA.

Request a quote today on an English wheeling machine for your sheetmetal shaping needs, or contact US Industrial Tool to learn more.
